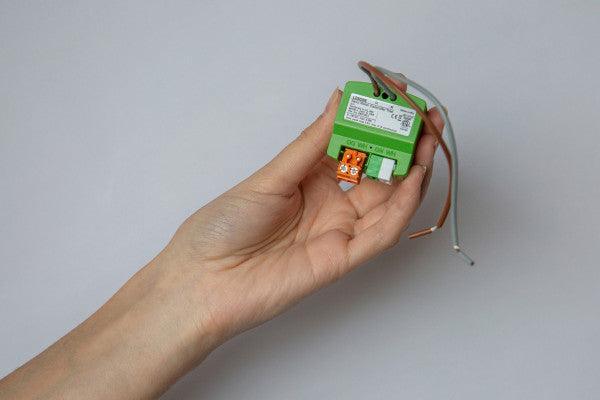

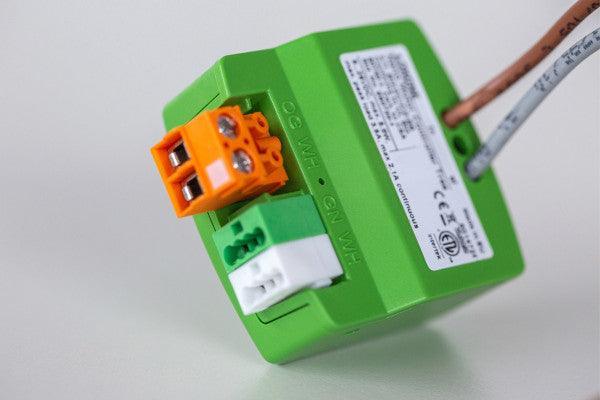

Nano Motor Controller Tree

The Nano Motor Controller Tree is a compact flush-mounted module for DC loads, which are controlled via Loxone Tree technology. The configurable outputs can be used to control the speed of DC motors or dim LED lights. You can use the Nano Motor Controller Tree in three different operating modes: Bidirectional motor, unidirectional motor and PWM dimming. In addition, the module has current flow detection and overcurrent detection.

• 3 Operating Modes
  - Bidirectional Motor (1 Output, Polarity Reversal)
  - Unidirectional Motor (2 Outputs)
  - PWM Dimmer (1 Output)
• Max. Total load for outputs
  - Bi- & Unidirectional: 2.1A continuous; 3.5A peak (<30s)
  - Dimmer: 2.1A
• Speed controlled for bi- & unidirectional
• Operating voltage 9...26VDC
• PWM Frequency:
  - Bi- & Unidirectional: 1 … 10kHz
  - PWM Dimmer: 400Hz
• Current Flow Detection: 100 … 3500mA
• Overcurrent Detection: 100 … 3500mA
• Compact Dimensions: 40x39x20.5mm
• Integrated 150mm long connection cable
• Commissioned in record time thanks to Loxone Tree technology
