Wallbox MyBox PLUS RFID LAN AC 22 kW
Tax included. Shipping calculated at checkout
Technical Specifications & Installation Manual Datasheet

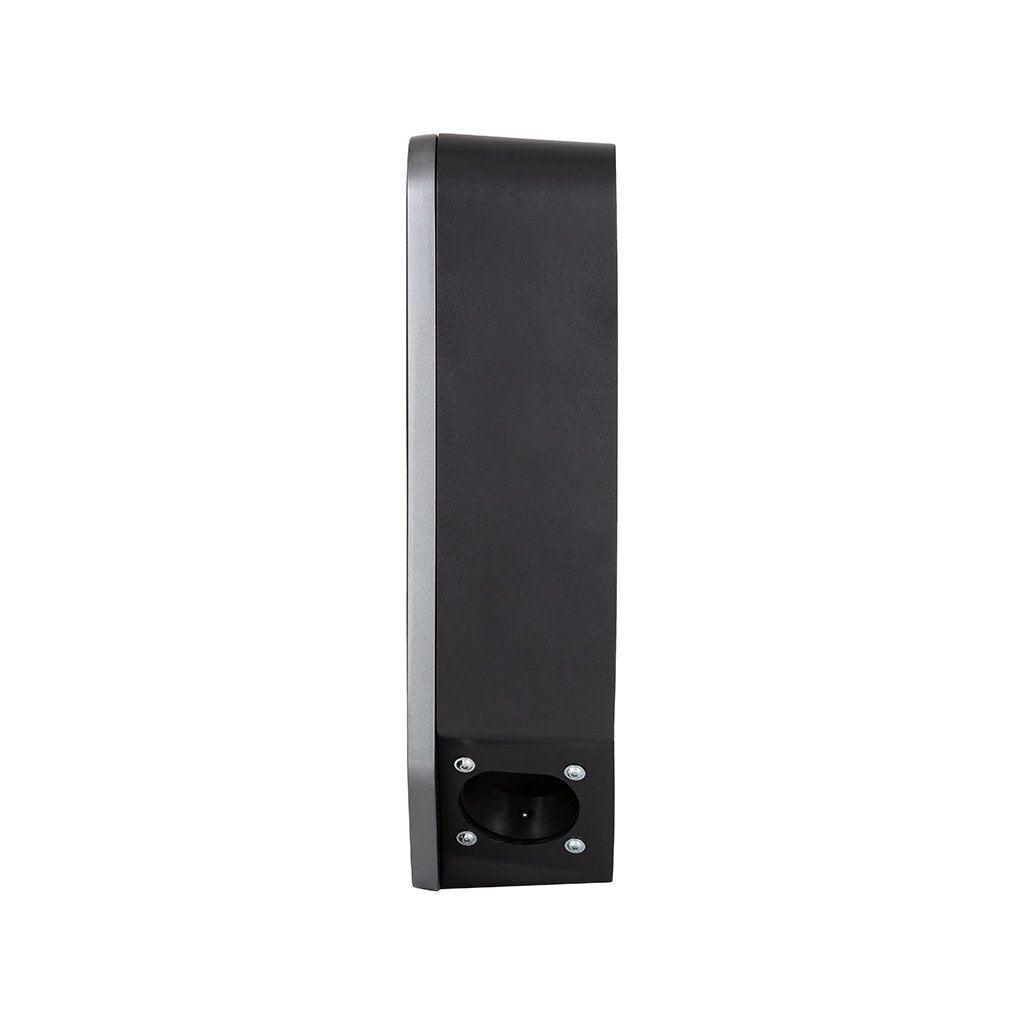

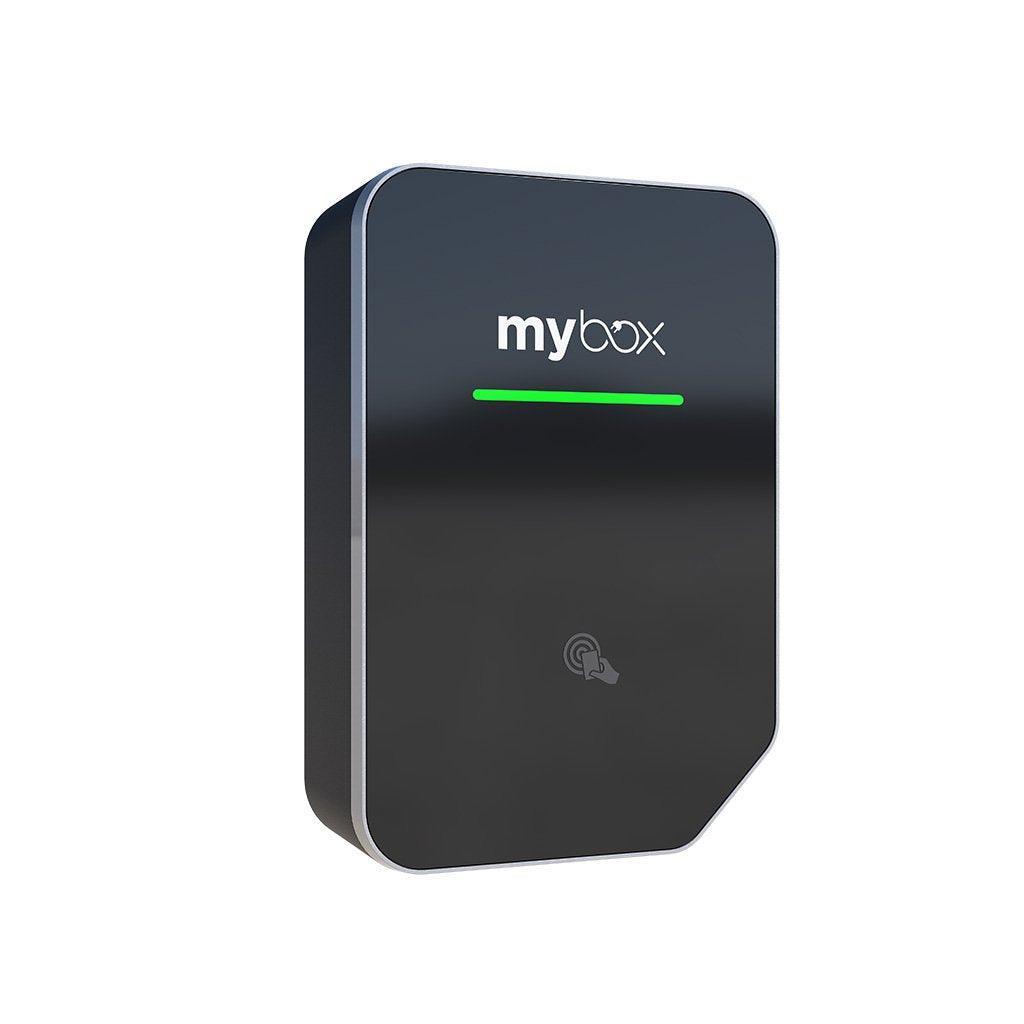

The MyBox PLUS AC charging station stands out for its reliability and modern design with a beveled edge that serves as a holder for the Type 2 connector.
It is intended for households, companies and public places. It is suitable for installation in public places with a higher risk of vandalism or cable wear. The Wallbox has a power of 22 kW, which allows you to use the full potential of any electric car. This MyBox PLUS charging station is equipped with a Type 2 socket, a straight or twisted cable with Type 2 terminals (Mennekes), which is 5 m long, and an authorization system that enables flexible user authorization using an RFID chip reader. The model is extended by Ethernet communication via local LANs. It is possible to purchase a module for dynamic power management, which prevents the main circuit breaker from tripping even when a heat pump or other powerful appliance is switched on.
The MyBox PLUS charging station is similar to the MyBox HOME wallbox in terms of parameters. However, it features a characteristic beveled edge that highlights the elegant appearance of the station.
Simple mounting on the wall and post
Czech product from European components
Possibility of connection with FVE
Socket (Type 2) – for easy connection of your own charging cable
MyBox mobile applications - you will find out important information about the status of the wallbox and the charging process in no time
Smart LED indicators inform about the status of the charging connector, as long as it is green, you can recharge
Communication via Ethernet or Wi-Fi network
Provides connection via local area networks (LAN)
The charging station is made of durable plastic and tempered glass (with the possibility of printing) and is resistant to adverse effects of weather and mechanical damage. Thanks to the operating temperature from -25 °C to 45 °C, you can reliably charge the battery of your electric car in both cold and steamy weather. You can safely install the MyBox PLUS wallbox in both indoor and outdoor spaces.
Wallboxes are designed with an emphasis on sustainability. Components of European production guarantee long-term functionality and trouble-free service.
High performance and advanced functions
All MyBox charging stations have a charging power of up to 22 kW. The MyBox Plus model provides charging for electric cars and plug-in hybrids. Currently, the majority of all EV vehicles use 11 kW power when charging. This station is therefore also ready for the future, when the electric car will use the high performance of AC charging stations.
The MyBox charging station is ready to add advanced functions that will be appreciated by users from the corporate or public space:
Dynamic power management - you prevent the main circuit breaker from tripping even if the heat pump or other powerful appliance is switched on

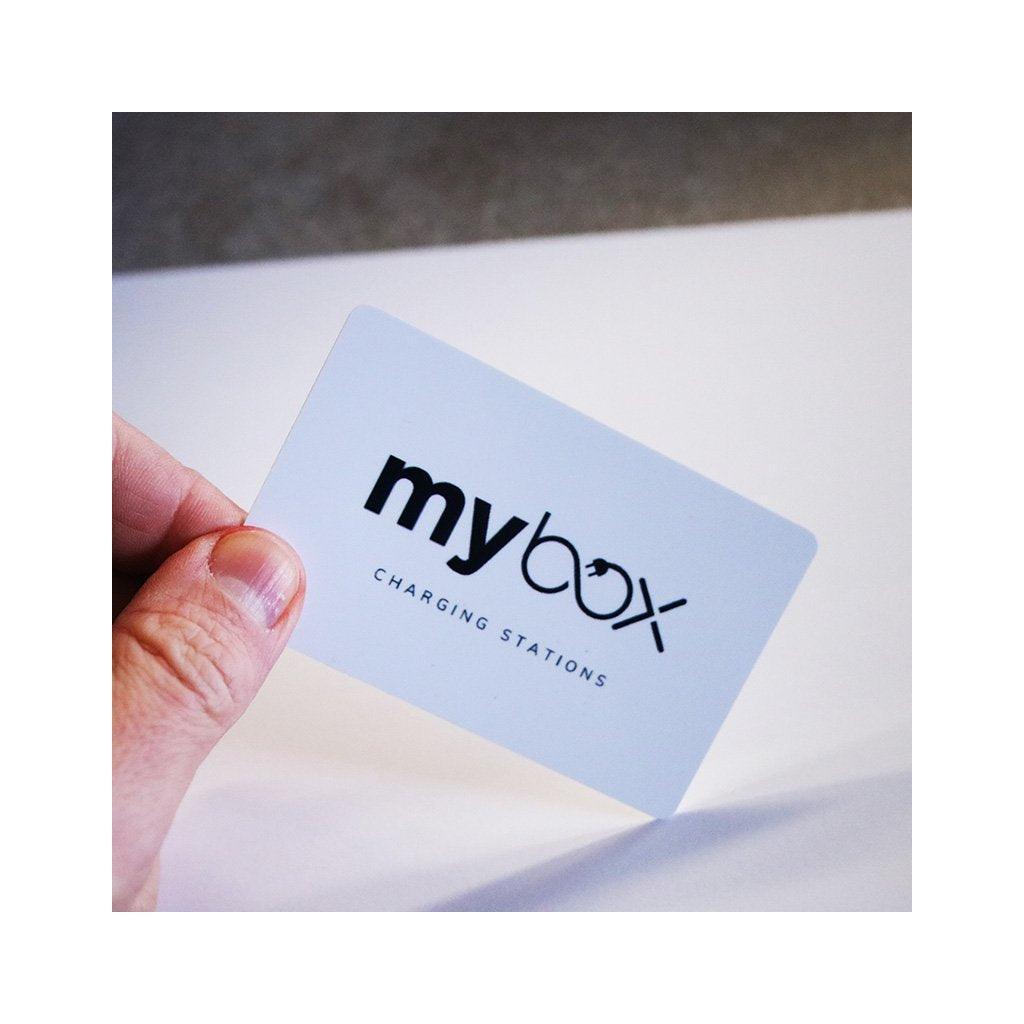

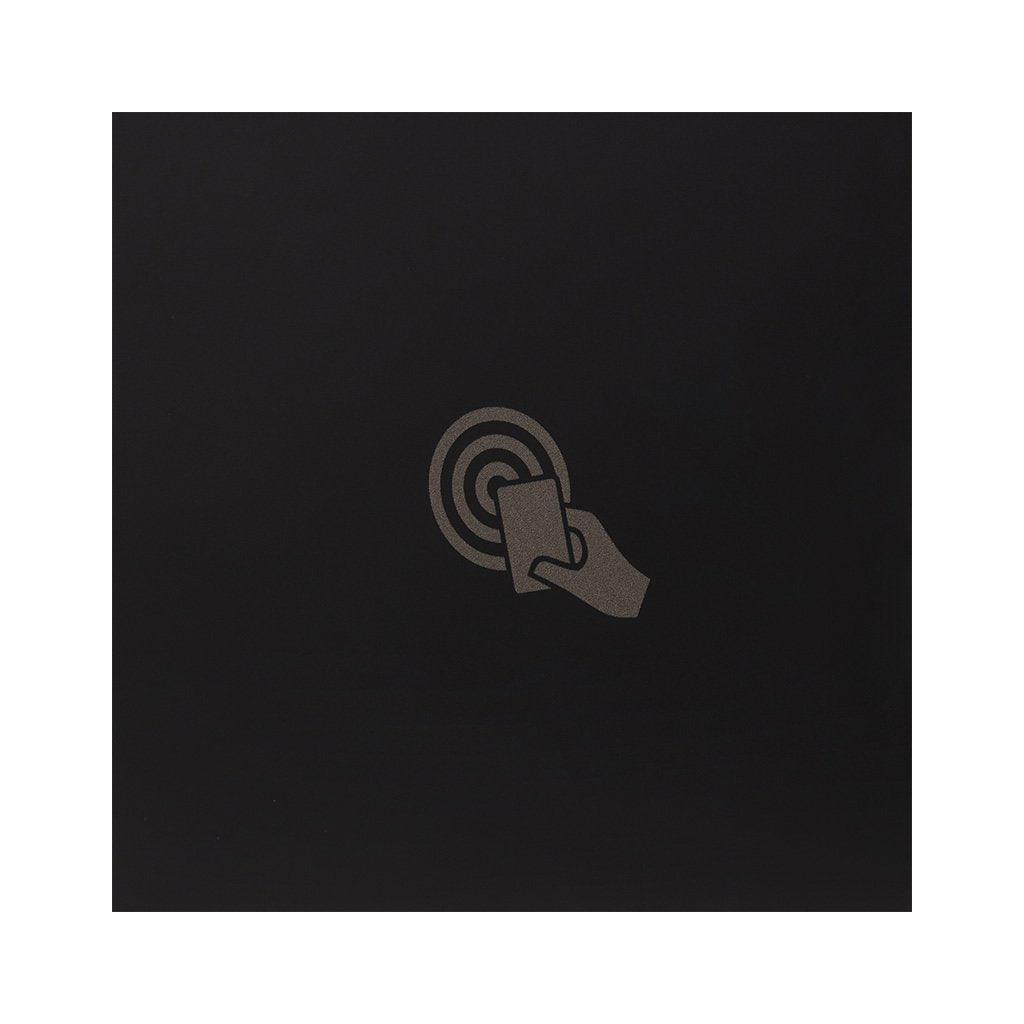

Authorization system - limit access to the charging station. You can authorize the user e.g. using an RFID chip reader
Connection with FVE - use excess energy from the photovoltaic power plant and reduce electricity expenses
Connection to SmartHome - connect the wallbox to a Smart Home or other central system. Control all devices from one place
Preparation for connection to the control software - you will get remote access to the wallbox. With it, also the possibility of managing users and the station itself (for an additional fee)
Protective elements - overvoltage protection and current protection
