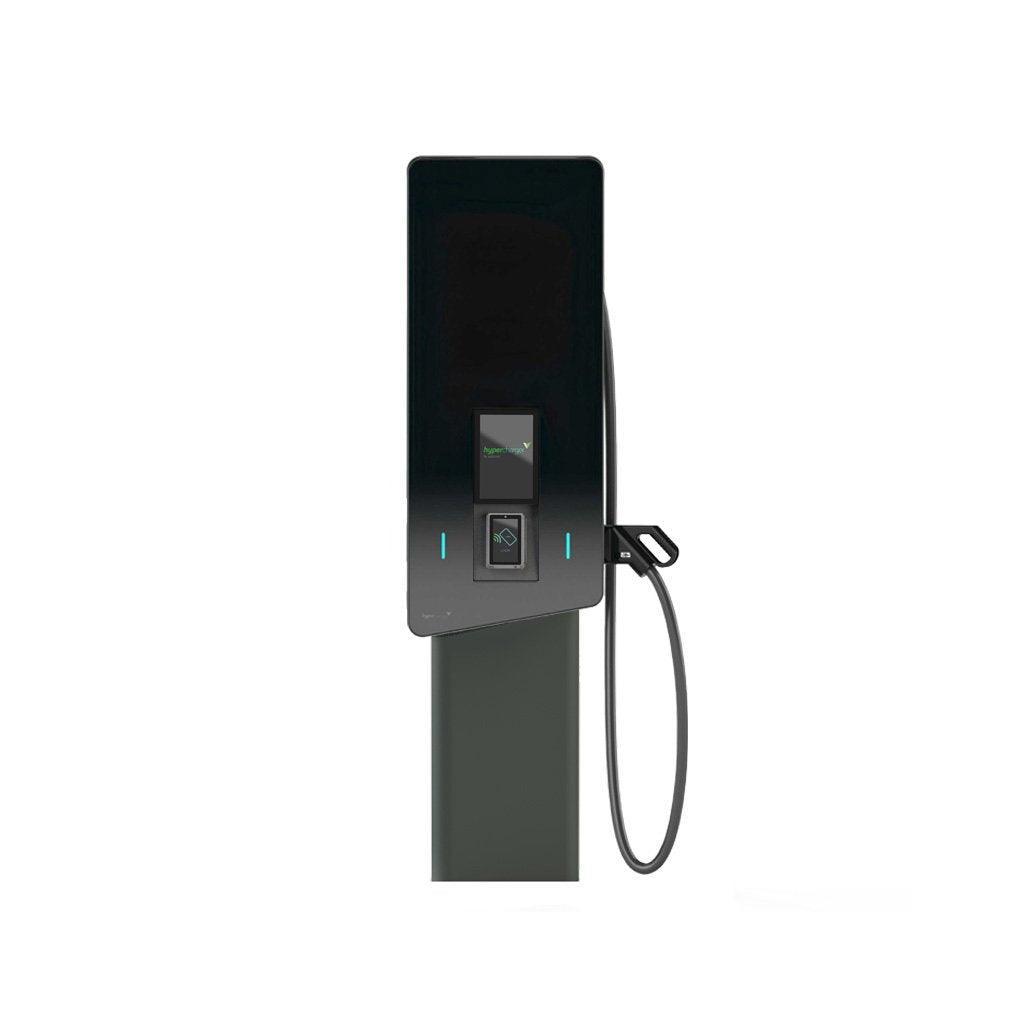

The Hypercharger HYC50 standing charging station

Sale price€23.999,00

Tax included. Shipping calculated at checkout

Size: with two cables with a length of 4.5 meters and cable management with CCS2 connectors
Technical Specifications & Installation Manual Datasheet

The Hypercharger HYC50 standing charging station stands out for its reliability, modern design and easy operation.

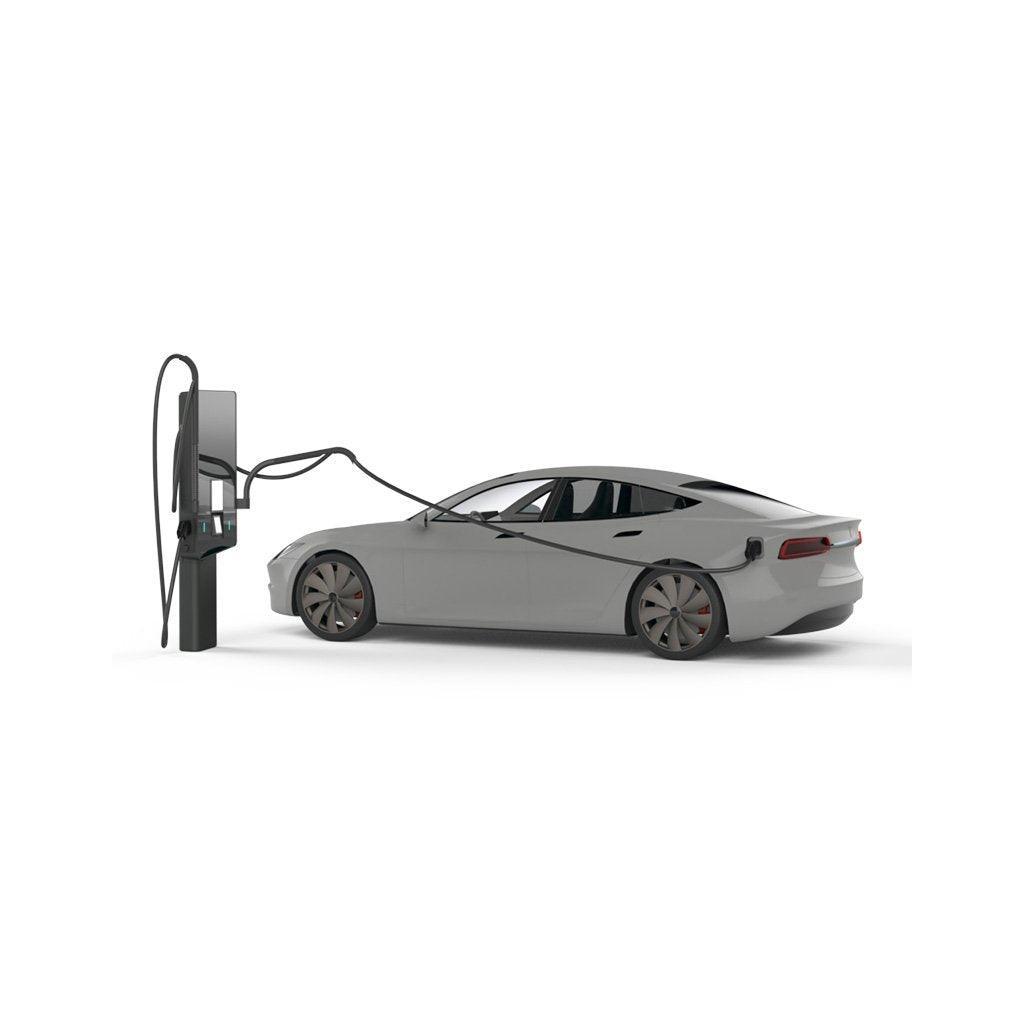

Hypercharger HYC50 is a compact, highly durable DC fast charging station that has a power of 50 kW and provides fast and efficient charging of electric cars. It offers the possibility of parallel charging, thanks to which it can charge two electric cars with a power of 2× 25 kW (with two versions of CCS2). It exhibits a very high noise level of up to 50dBA. The HYC50 charging station has a large 10' digital display allowing easy control.

Another plus DC station Hypercharger HYC50 is compatible with the V2G (Vehicle-to-Grid) standard, which enables two-way communication and energy transfer between electric vehicles and the electric grid. Electric vehicles can serve as mobile energy storage that has the ability to provide electricity back to the grid in times of demand.

Version of the Hypercharger HYC50 standing DC charging station
with two 4.5 meter long cables and a cable duct with CCS2 connectors
with two 2.7 meter long cables (free hanging) with CCS2 connectors
with one 4.5 meter long cable and cable duct with CCS2 connector
with one 2.7 meter long cable (free hanging) with CCS2 connector

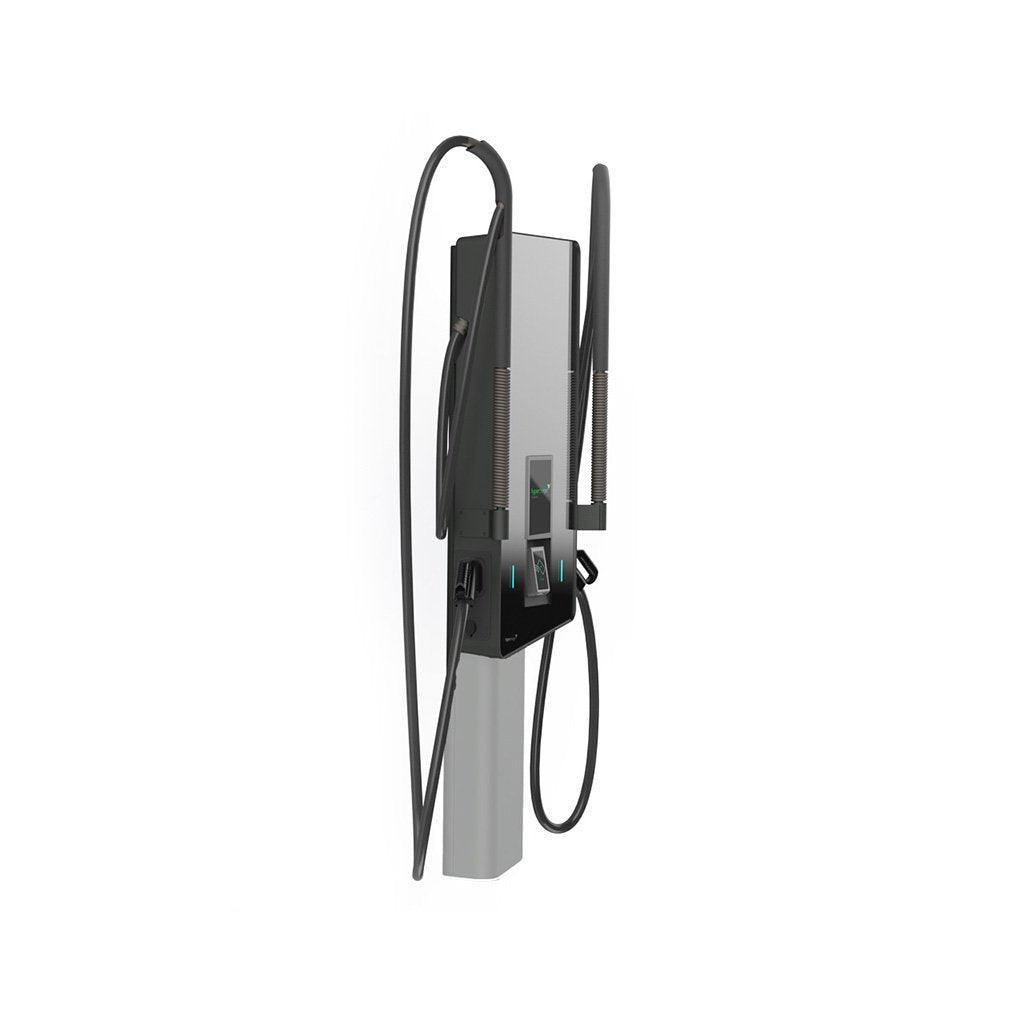

The wall-mounted Hypercharger charging station includes a stand for its installation.

Key features of the Hypercharger HYC50 standing DC charging station
- Charging one vehicle with a power of 50 kW or two vehicles with a maximum power of 25 kW
- 10'' touch screen
- CCS2 connectors (2 or 1 depending on the model), cable length 4.5 m or 2.7 m (depending on the model)
- Ultra low noise level up to 50dBA
- Effectiveness min. 97%
- V2G standard
- Authorization system: RFID


Additional parameters

Category Charging stations
Input AC voltage 3×230/277 V (400/480 V) 50/60 Hz (+10%, -15%)
Network types TN-C, TN-S, TN-C-S or TT
Input AC current 90 A, 52 kW at 50 kW output DC power, maximum 150 A
Output power 50 kW when charging one vehicle, 2x25 kW when charging two vehicles in parallel
DC output voltage (max.) 150-1000 V DC
Charging cable length 2.7 m (without cable suspension system) or 4.45 m (with cable suspension system)
DC CCS2 plugs
RFID authorization
OCPP 1.6 JSON communication
Data connection Mobile 4G LTE/2G, Ethernet 10/100Base-TX, WiFi 802.11 a/b/g/n/ac 2.4 and 5 GHz
Remote management, remote access, diagnostics, software updates
User interface 10.1" touch screen
Protection IP55
Protection against mechanical impact IK10
Operating temperature -30 °C ~ +55 °C
Humidity from 0% to 95%
Dimensions 1300 × 520 × 250 mm (charger body only, without cables and stand)
Weight 95-145 kg (depending on the model)
Two-way charging V2G ready (Vehicle to grid)
Service life min. 10 years
