IVGM 10000W 600V Three Phase 10KVA Commercial Usage Inverter IP65 Waterproof Outdoor Inverter with MPPT Charge Controller
Tax included. Shipping calculated at checkout
Technical Specifications & Installation Manual Datasheet

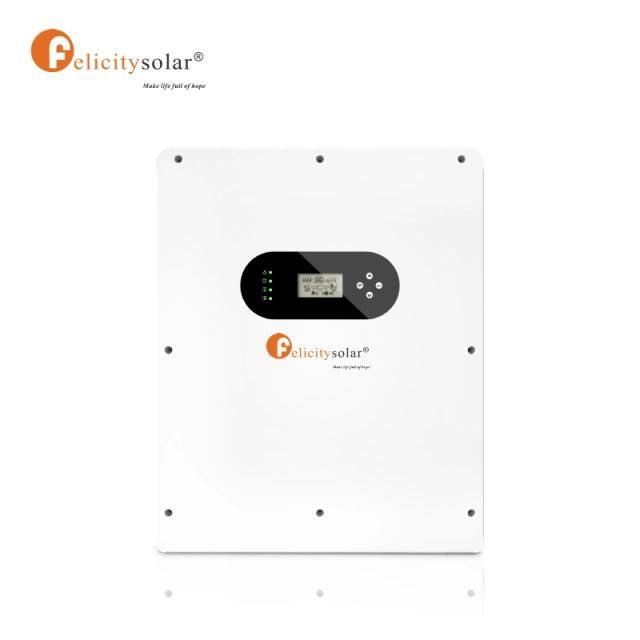

Felicity Solar IVGM100600 is a multifunctional inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user configurable and easy accessible button operation such as battery charging, AC/solar charging, and acceptable input voltage based on different applications.
· Power supply can be switched automatically and switching time within 20ms.
· Power supply can be switched automatically and switching time within 20ms.
· Long warranty period:5 years.
· Convenient RS232/RS485 Communication.
· IP65 Protection level.
· Support 3 Phase imbalance.
Support storing energy from diesel generator
WiFi/GPRS Monitoring
Max. charging/discharging current of 25A
AC couple to retrofit existing solar system

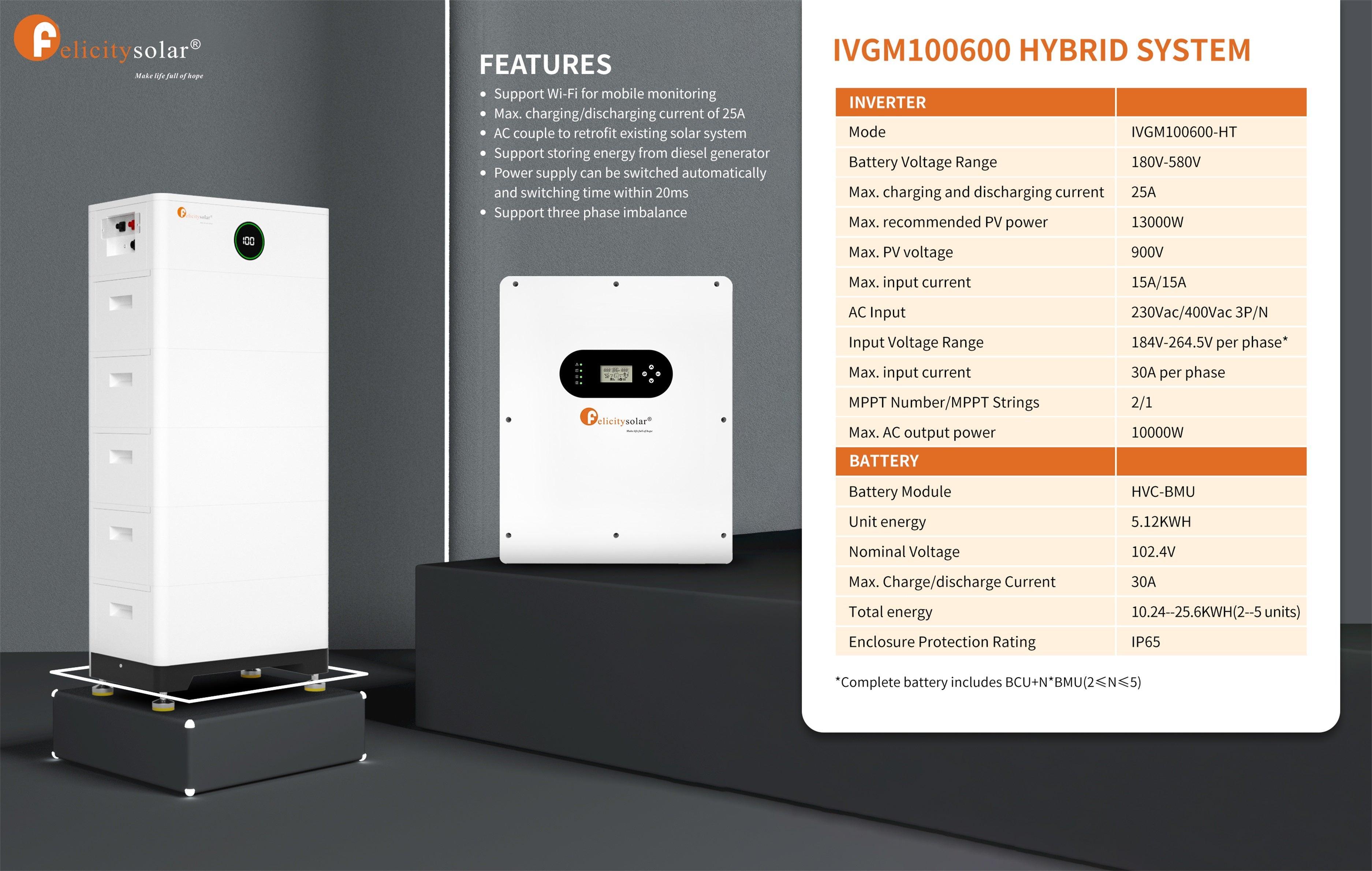

IVGM100600 Inverter SPECIFICATIONS
Model | IVGM100600 |
Battery Input Data | |
Battery Voltage Range | 180V~580V |
Max. charging and discharging current | 25A |
Max. charging and discharging power | 10000W |
Battery type | Li-Ion/Lead-acid |
DC Input Data (PV side) | |
Max.recommended PV power | 13000W |
Max.PV voltage | 900V |
Start voltage | 160V |
PV voltage range | 160V~900V |
MPPT voltage range | 200V~850V |
MPPT Voltage Range for Full Load | 450V~850V |
Nominal voltage | 720V |
Max. input current | 15A/15A |
Max.shorted curent | 18A/18A |
Number of MPP trackers / strings per MPP tracker |
2/1 |
Grid Data | |
Nominal Input Voltage | L1/L2/L3/N/PE, 230/400Vac |
Input Voltage Range | 184~264.5Vac* |
Nominal grid frequency | 50/60Hz* |
Max. input current | 30A Per Phase |
Max. Charge Current | 25A Per Phase |
Max. AC output power | 10000W |
AC Output Rated Current | 14.5A |
Max. output current | 18A |
Max. Continuous AC Passthrough | 30A |
Power factor | >0.99 |
Displacement power factor | 0.8leading...0.8lagging |
THDI | <3% |
AC Output Data(Back Up) | |
Rated output power | 10000VA/10000W |
Max. Output current | 30A |
Rated AC output voltage | L1/L2/L3/N/PE, 230/400Vac |
Rated AC output frequency | 50/60Hz |
Efficiency | |
Max.efficiency | 97.6% |
Euro efficiency | 97.0% |
MPPT efficiency | 99.9% |
Protection | |
Output over current protection | Integrated |
Output over power protection | Integrated |
Output shorted protection | Integrated |
Anti-islanding protection | Integrated |
GFCI Protection | Integrated |
Insulation Resistor Detection | Integrated |
General Data | |
Operating temperature range | -25°C~60°℃,>45℃ Derating |
Protection degree | IP65 |
Relative humidity | 100% |
Cooling concept | Nature |
Altitude | 2000m |
Communication | RS232/RS485 |
BMS Communication | CAN/RS485 |
Monitor module | WiFi/GPRS |
Display | LCD+LED |
Installation Style | Wall-mounted |
Warranty | 5 years |
Grid Regulation | VDE-AR-N 4105;G99/1;EN50549-1;CEI 0-21;AS 4777.2;NRS 097-2-1; |
Safety Regulation | IEC 62109-1/2,IEC 62040-1 |
EMC | EN61000-6-1.EN61000-6-3 |
Net Weight | 36.2KG |
Gross Weight | 41.5KG |
Product Dimension | 533*431*213mm |
Package Dimension | 635*533*321mm |
