Blitz Single LUX 22 kW Wallbox
Tax included. Shipping calculated at checkout
Technical Specifications & Installation Manual Datasheet
High-quality charging solutions for households, companies, large charging parks, garages and specialized custom orders.

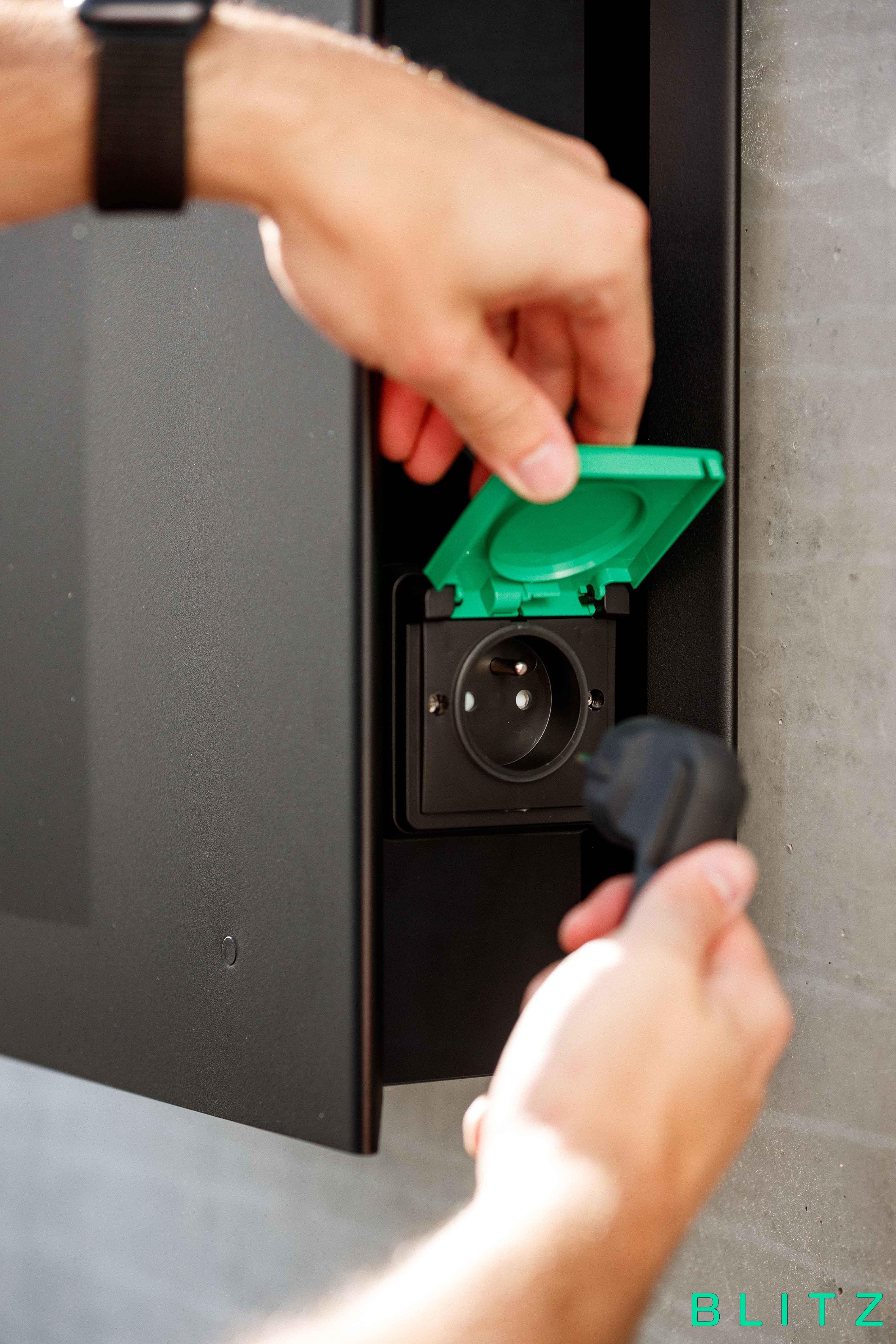

The charging stations are made of high-quality and durable materials such as aluminum or highly transparent thermoplastic polymer and are certified according to the international standard IEC 61851. The stations are compatible with any electric car with a T2 socket and provide charging with a power of 22kW per 1 charging point, while providing the possibility of up to 2 charging points within 1 station with a total power of up to 44kW. They also include a wide range of accessories from a charging socket (type 2 connector), through a smooth or spiral cable in lengths of 5m and 8m, or a 230V socket, e.g. for charging an electric bicycle or scooter. Compatibility with the OCPP communication language offers the possibility of pairing stations with various software for load control and management, or split invoicing. The stations can also be controlled in the same network via the Blitz Web App, where it is possible to manage the configuration, intelligent settings, check consumption, have an overview of transactions or the current status of the stations.
Models and installation of stations:

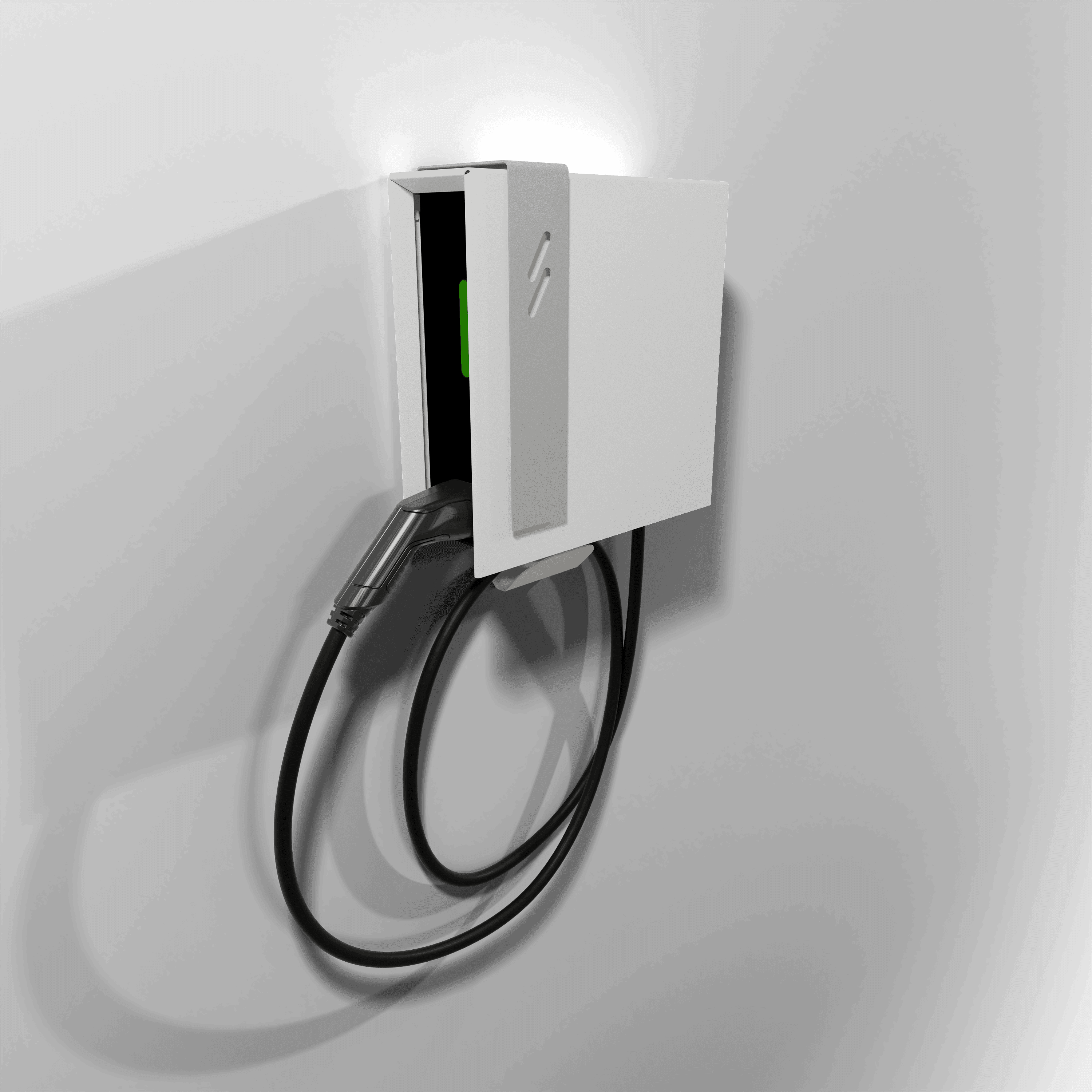

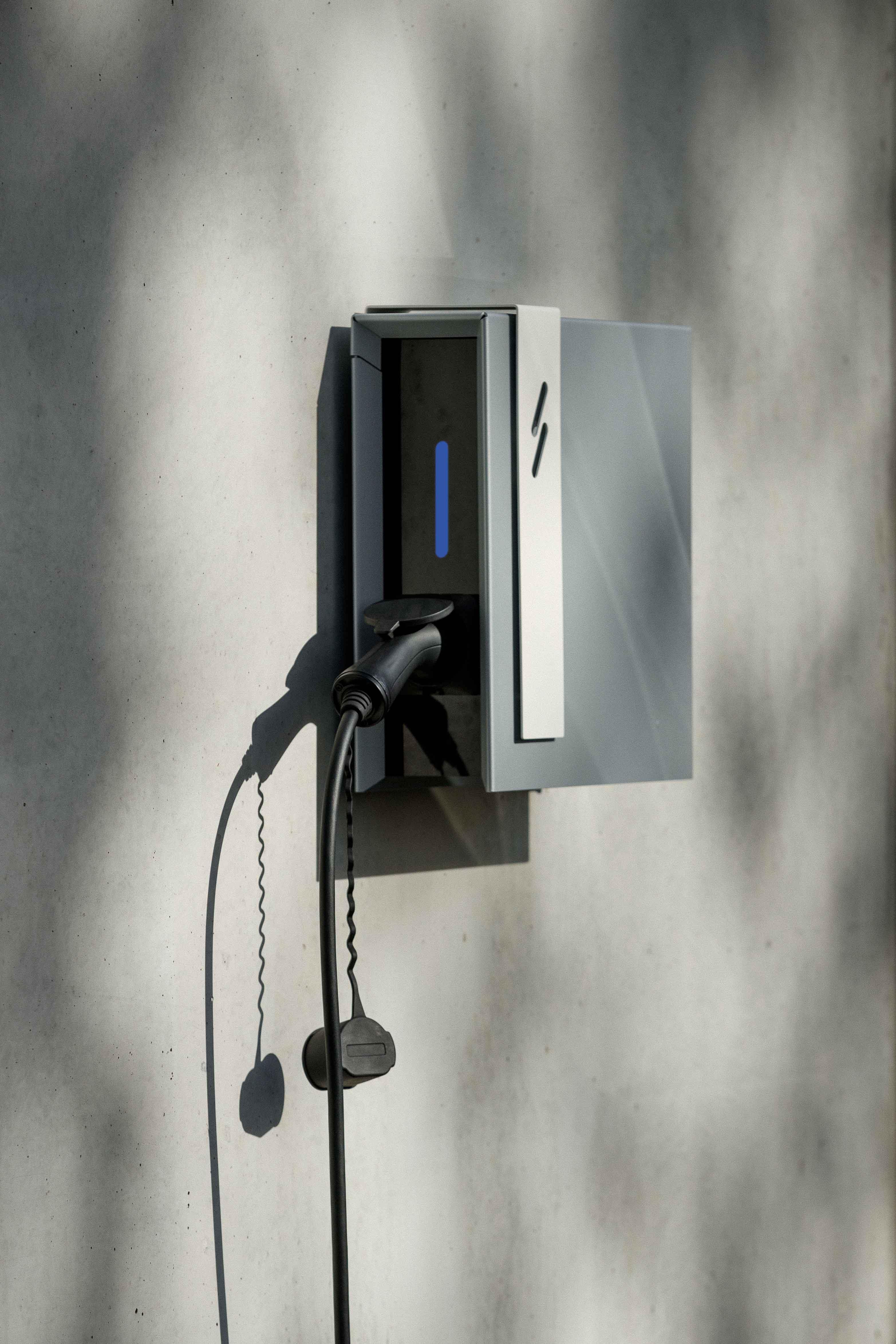

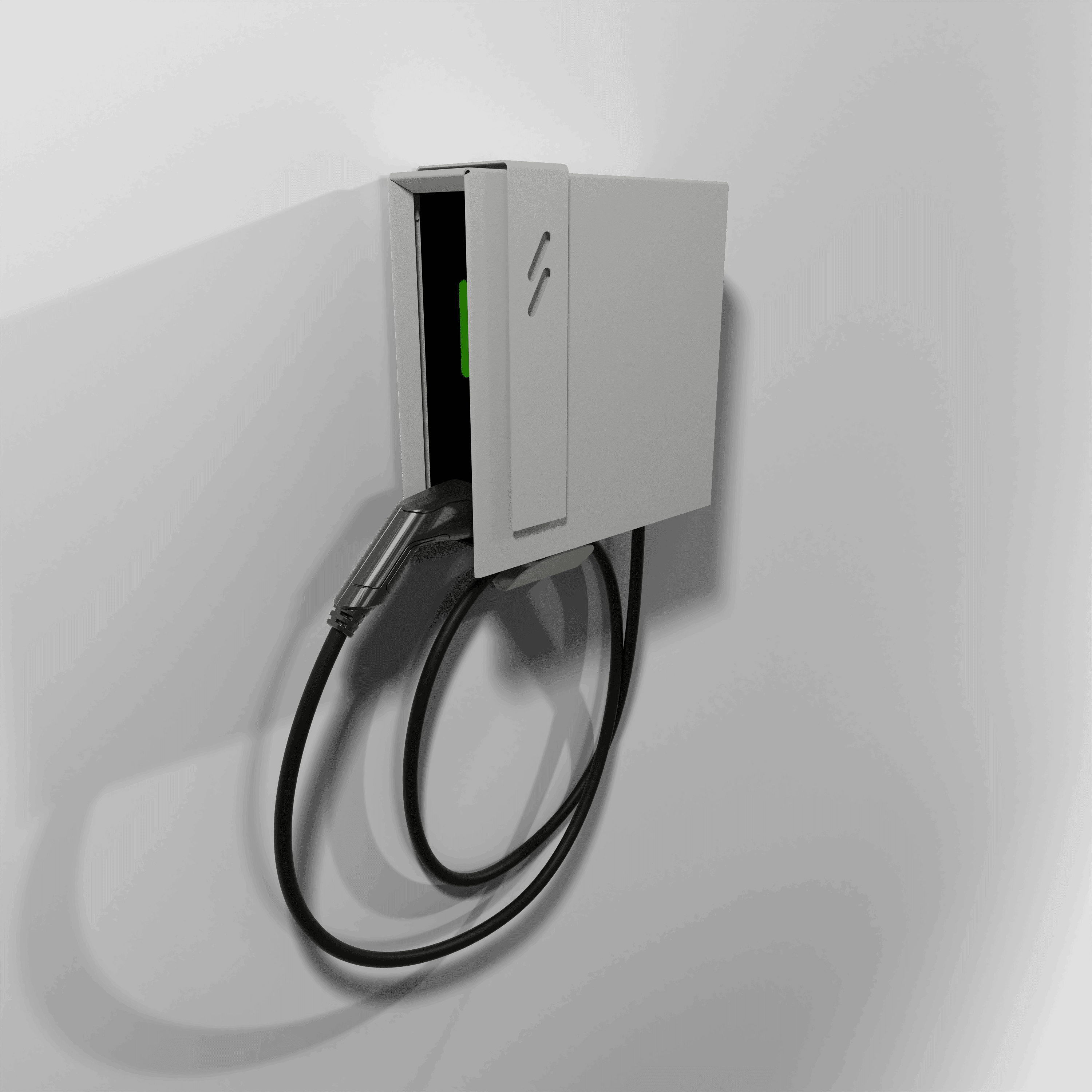

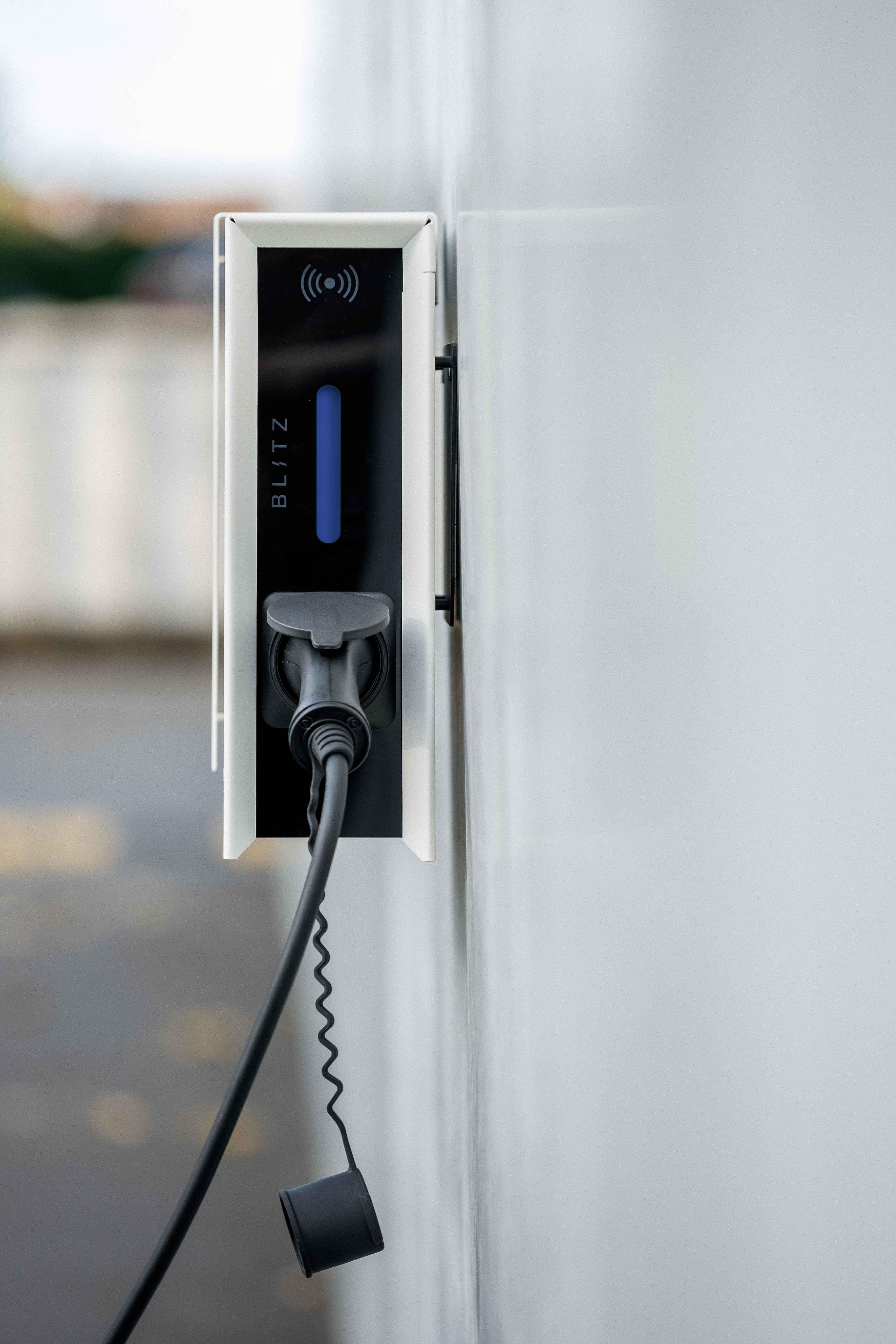

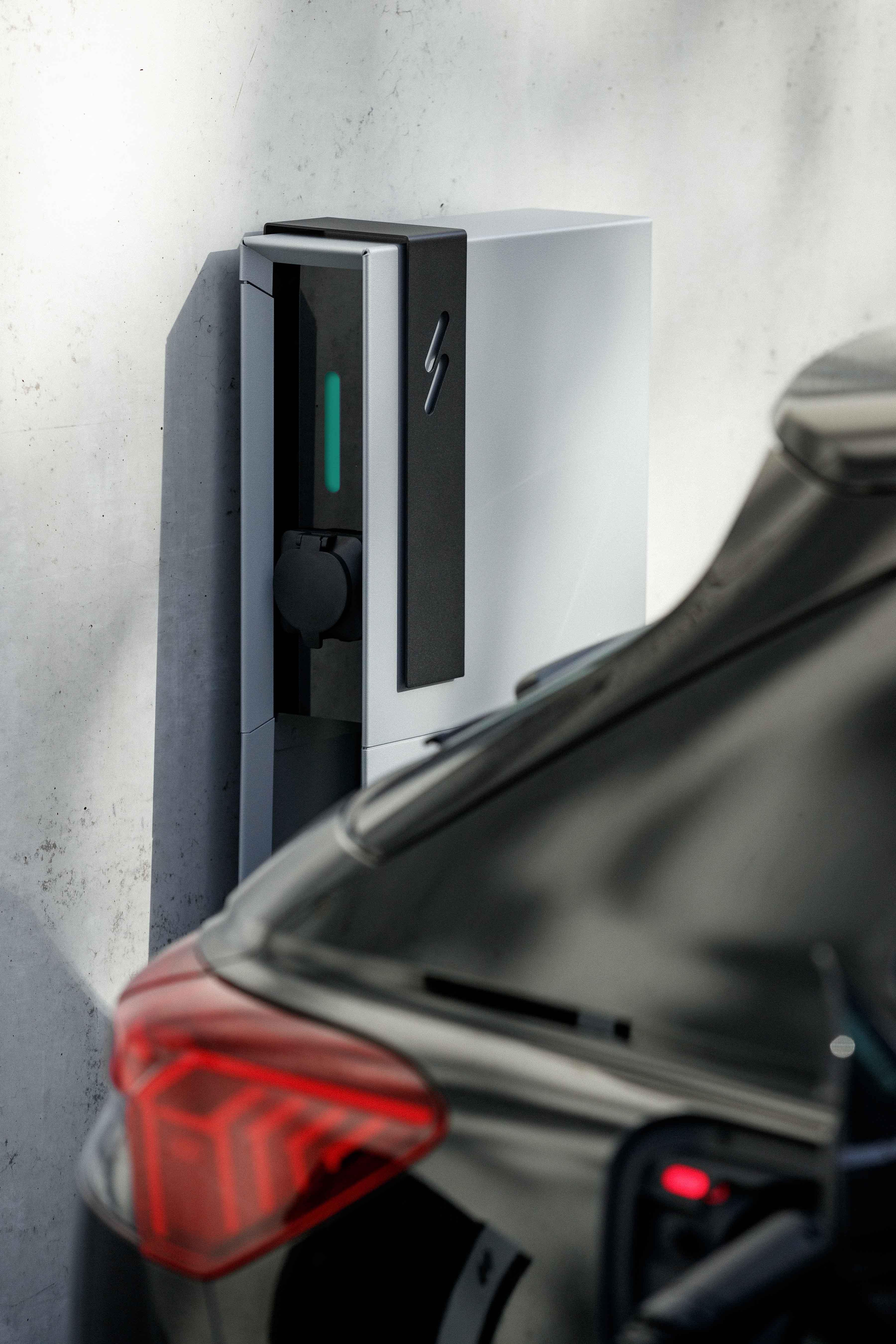

WALL – wall box with wall installation
TOWER – stand version with installation in the ground
PUSH – a built-in station that slides out of the wall (in the testing phase)

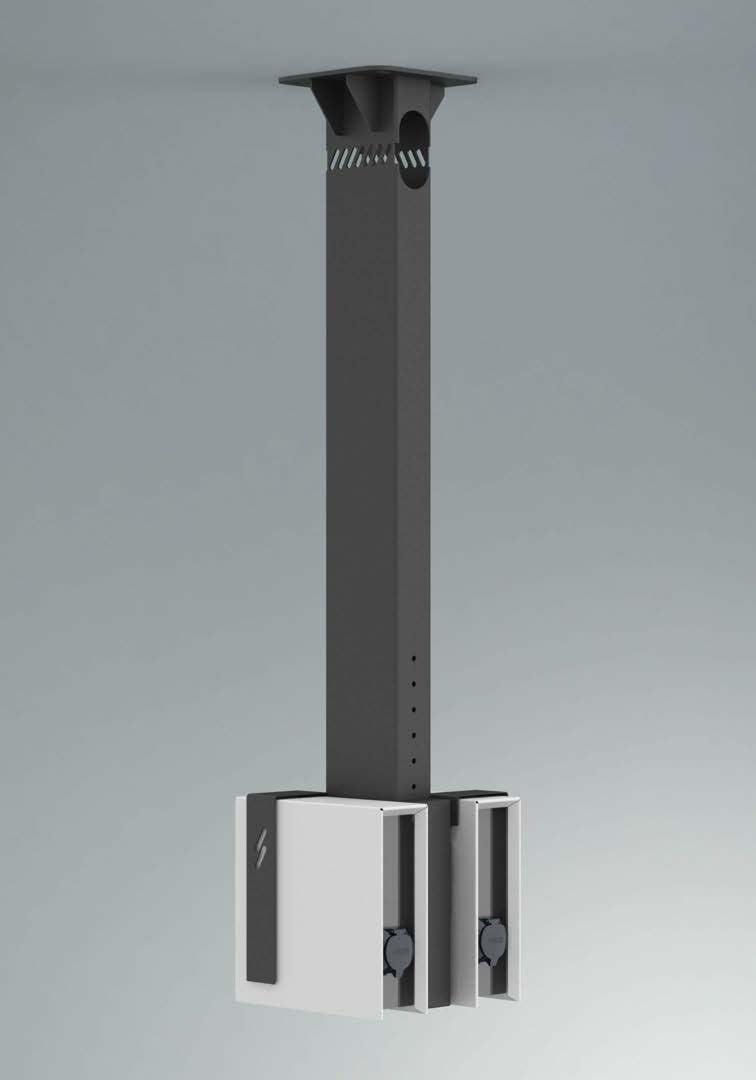

CEILING MOUNT – bracket for holding 2 stations with installation in the ceiling (possibility of up to 4 charging points in one place)
Specialized solutions also provide the possibility of ceiling installation in underground garages or garage houses, where the possibility of building modifications is limited and the cabling is routed in the ceiling. 2 charging stations can be installed on one console, which can provide up to 4 charging points at the same time. The deformation zone in the console ensures protection against damage to stations or vehicles in the event of an impact. Quite simply, we think of everything.
